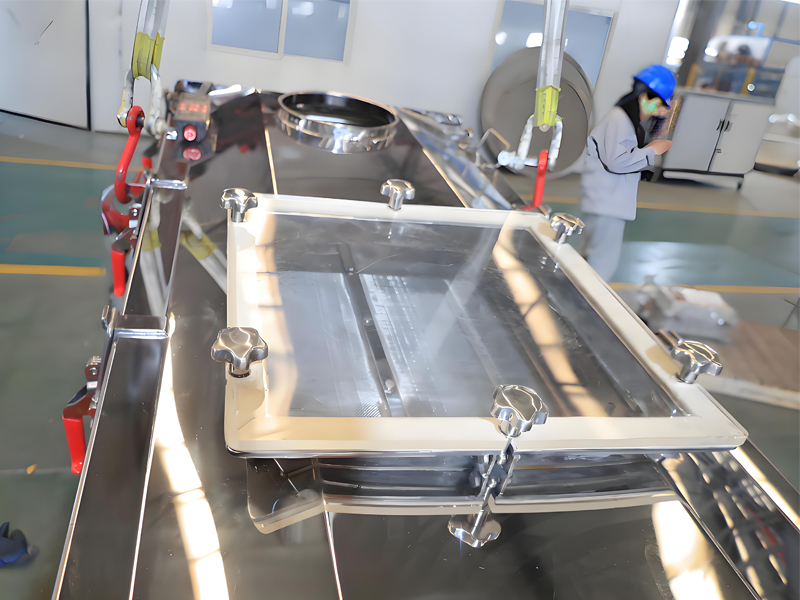

Multi-deck linear vibrating screen
XFZ Series — various dimensions
Continuously grades bulk material into several size fractions, for example to separate fines, an on-size product and oversize particles. Linear vibration conveys material along the screens. Each deck retains one fraction and allows smaller particles to reach the next deck, with the resulting fractions directed to separate outlets. The number of decks, mesh apertures and feed arrangement are selected according to the required size cuts, throughput, moisture content and flow characteristics of the product.
Separation into particle-size fractions
Sizing according to product and mesh
Technical data
Reference configuration
The final configuration is selected for the intended operation, installation conditions and compatibility with existing equipment.
Specifications by model
Each column identifies a model or configuration. Shared values are marked.
↔ Scroll to compare models
| Parameter | XFZ0520 | XFZ0525 | XFZ0530 | XFZ0535 | XFZ1020 | XFZ1025 | XFZ1030 | XFZ1035 | XFZ1040 |
|---|---|---|---|---|---|---|---|---|---|
| Screening surface dimensions (mm) | 500 × 2000 | 500 × 2500 | 500 × 3000 | 500 × 3500 | 1000 × 2000 | 1000 × 2500 | 1000 × 3000 | 1000 × 3500 | 1000 × 4000 |
| Motor power (kW) | 2 × (0,37–0,75) | 2 × (0,37–0,75) | 2 × (0,55–1,1) | 2 × (0,55–1,1) | 2 × (0,55–1,1) | 2 × (1,1–1,5) | 2 × (1,1–1,5) | 2 × (1,5–2,2) | 2 × (1,5–2,2) |
| Range deck options | Common to all models1–5 | ||||||||
| Weight (kg) | — | — | — | — | — | — | — | — | — |
| Equipment dimensions (mm) | — | — | — | — | — | — | — | — | — |
| Electrical supply (V) | — | — | — | — | — | — | — | — | — |
| Operating flow rate | — | — | — | — | — | — | — | — | — |
— To be confirmed for this configuration.
Dimensions describe the screening surface, not the overall envelope. Power is stated per motor, with two motors; capacity and installation depend on configuration.
General characteristics
| Type | Linear vibrating screen |
|---|---|
| Material | Specified for the product |
| Number of decks | Selected for the required fractions |
Project and supply
Configured for your process
Before the proposal, we confirm the application, operating parameters, interfaces and scope of supply.
- Technical selection and configuration
- Documentation and automation options
- Delivery to Europe, North America and South America
